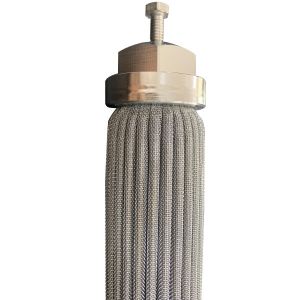

20 Micron Stainless Steel Filter Pleated Filter Cartridge For Chemical Fiber

Name: 20 Micron Stainless Steel Filter Pleated Filter Cartridge For Chemical Fiber
Brand: XinLi
Price: 1 USD

Wholesale 20 Micron Stainless Steel Filter Pleated Filter Cartridge For Chemical Fiber from china suppliers

Brand Name : XinLi

Model Number : Pleated Filter Element

Certification : ISO9001

Place of Origin : HeNan

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000+Piece+Per Month

Delivery Time : 20-25Days

Packaging Details : Plastic Bubble Film+Wooden Box

Color : Silver

Length : 5,10,20,30,40 inch and other special sized

PH : 1-14

Working Temperature : 300℃

Working Pressure : 30Mpa

Material : 304,316

Filter rating : 1-300um

Diameter : 40,50,60,100mm and customized size

Contact Now

304/316L SS 20Micron Pleated Wire Mesh Melt Filter Element /Cartridge For Chemical Fiber

Prodcut Introduction:

Main filter media of pleated filter elements are stainless steel sintered fiber felt.
Stainless steel sintered fiber felt is a kind of multipore deep filter media, sintered with stainless steel fiber at the high temperature.The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning.

Application:

Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.

Technical Prameters:

Product Type	Material	Micron (um)	Outer Diameter (mm)	Length	Connector	O-Ring/Gasket	Filter Media
Pleated	SS304	1,2,5,10,15,20, 25,30,40,50,Etc	30	5’’	1’’ BSP Threaded	Silicore	Stainless Steel Wire Mesh
	SS316L		60	10’’	NIL-Cut Ends	Buna-N	Mesh + Sintered Fiber Felt
	Other		65	20’’	DOE	Viton
			80	30’’	222/Seal	Teflon
			85	40’’	226/Seal	Ethylene Propylene
The above options are freely combined, For Example: Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh Notice:It also can be customized according to your requirerment

Filter Elements Adaptors:

1. Standard Adaptors (222,220,226)
2. Fast Interface Connector
3. Threaded Connector
4. Flange
5. Tire Rod
6. Other Special Adaptors

Properties:

1.Large filtration are (5-10times) as normal cartridge shape filter element;
2.High filtering efficiency;
3.Simple technical process as gas is filtered directly.
4.Good air permeability,stable filter rating,no leakage.
